EZS MB 230

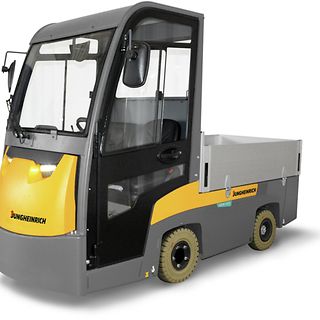

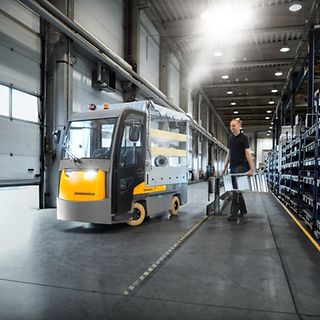

Our robust and versatile series 5 flatbed truck is a reliable partner for indoor and outdoor use – especially for maintenance, fast supply of spare parts or as a four-wheel tow tractor. It easily transports loads up to 1.5 t and offers maximum ride comfort, high safety and continuous performance with low energy consumption. A 48-V 3-phase motor delivers impressive acceleration and high end speeds, even with load. The comfort suspension protects the driver and the vehicle. Moreover, the electro-hydraulic steering allows precise driving with minimal effort. Optionally different couplings, cabs with various features, LED lighting and extensive accessories for individual adaptation are available. The performance-enhancing driver's seat with low entry and spacious footwell ensures ergonomic working as well as the easy-to-reach steering wheel and controls.

Features

Innovative 3-phase AC technology

More power and performance while simultaneously reducing operating costs due to maintenance-free 3-phase AC technology.
High efficiency levels with excellent energy management.
Powerful acceleration and high travel speeds even with load.
Rapid direction change.
Maintenance-free drive motor.
2-year warranty on driving motor.

Long operating times with lead-acid battery

Energy-efficient 3-phase AC technology and high battery capacities allow for long operating times.
XL version allows the use of forklift truck batteries (e.g. batteries of the electric 3 wheel fork lift EFG 213-220).
Standard version: 3 PzS 345 Ah.
XL battery compartment: 5 PzS 625 Ah.

Comfortable and safe driving

The fully sprung frame with springs and shock absorbers guarantees traction at all times.
The automatic parking brake ensures reliable starting and roll-back protection on gradients.
Impulse control speedCONTROL: The preset speed via accelerator pedal is maintained in every driving situation.
Energy recovery: Regenerative braking when decelerating.
Programmable crawl speed button allows travel at reduced speed.
Three alternative travel programs can be set to suit individual needs.
Seeing and being seen: 2-stage LED lights (daytime running lights, travel lights).

Rugged construction for the toughest applications

Frame made from high-grade 8mm steel sheet.
Extra-high chassis apron to the front.
Robust LED lights: Front lights, rear lights and indicators (optional).
Lateral protection provided by skirting (optional).

Always informed

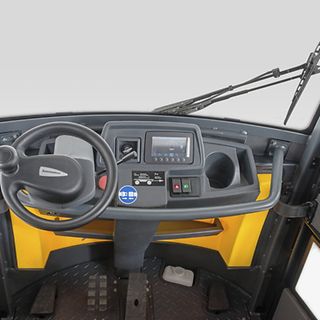

Extensive display and setting instruments always provide a complete overview on the battery discharge status, number of operating hours, speed and error codes.
Activation of truck via PIN code (optional).
Adjustable travel parameters.

Various icons provide information about the status of the truck.

Optimum ergonomics
