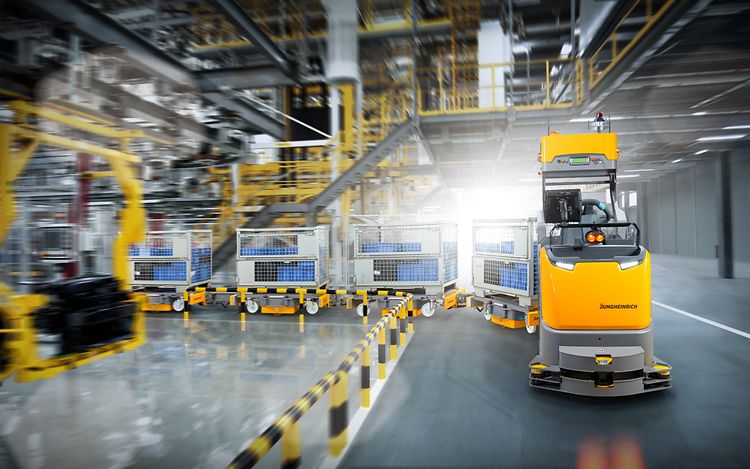

Automated Guided Vehicles (AGV)
Automatic truck solutions and fully automatic transport are the main focus of our automated guided vehicles (AGVs). We use intelligent automation components to automate our tried-and-tested standard production trucks and adapt them to your individual requirements.
The right AGV for you: As a stand-alone or system solution
When creating an automated guided vehicle (AGV) solution for your business, we are guided by your specific requirements for your production and working environments. First and foremost, our AGVs enable safe and efficient transport processes. They can transport loads weighing up to 2.5 tons to the designated stations safely, fully automatically and, thanks to laser navigation, with millimetre precision. We supply the AGV in your required configuration, either in conjunction with an inventory management system or as a stand-alone solution. The automated truck solution is tailored to your specific environment so that the AGVs complete your tasks with the utmost reliability – be it actuation of high-speed doors, load changing on conveyor systems or level changes via freight elevators. Our AGVs can be easily integrated into your production environment and used safely in mixed operation.

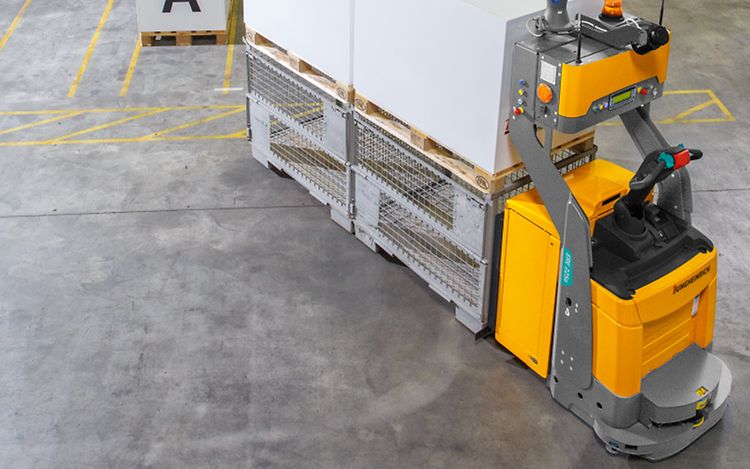

Automated guided vehicles based on series production trucks
Our automatic truck solutions combine sophisticated, innovative technology with a vast amount of experience. To identify the right AGV for your needs, we are happy to analyse your individual transport structures to identify the perfect solution with which to optimise your processes. And we will work with you to plan the best possible application of your AGV. Our aim is to save you time and costs, particularly for standardised routine tasks, and to minimise cases of transport damage. When using automated guided vehicles, you benefit from efficient and reliable transport procedures as well as optimum use of your resources. Thanks to our award-wining Jungheinrich Logistics Interface, which is developed entirely in-house, we can easily integrate your AGV with an existing ERP system. We also offer 24/7 support for our automatic systems, with rapid assistance assured via remote access. This allows us to ensure maximum performance and problem-free deployment at all times.

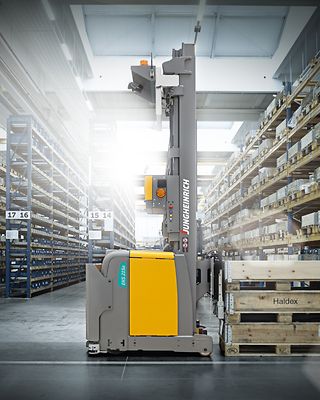

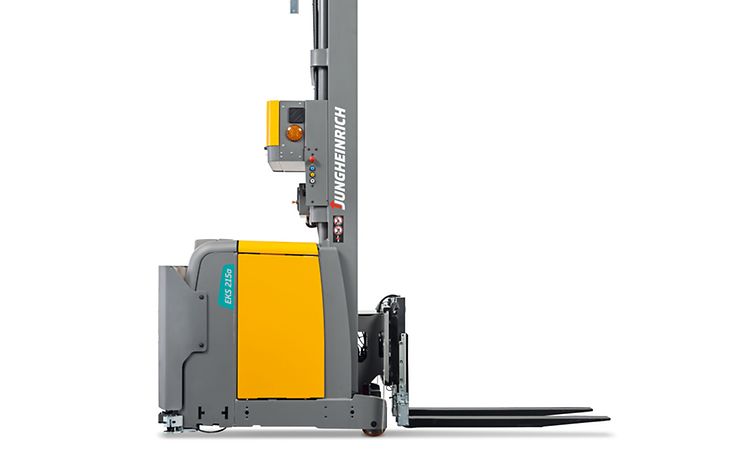

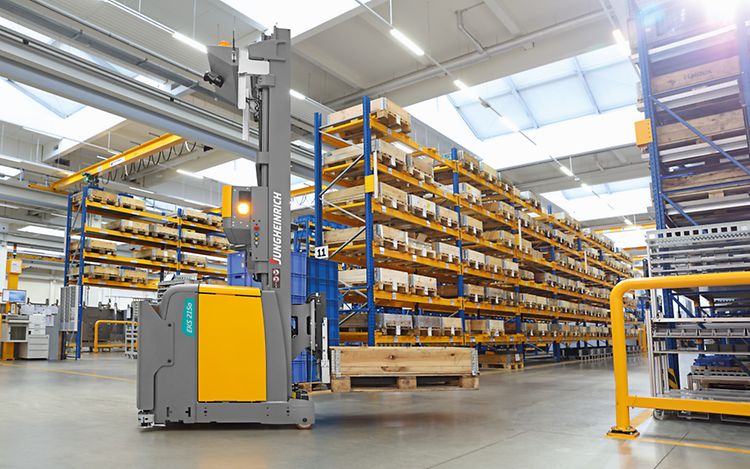

Automatic high-rack stackers for high-bay warehouses
Automatic high-bay warehouses place particularly high demands on your warehouse technology. The complete system is comprised of one or more AGVs, based on a high-rack stacker, along with a rack system, a protective fence including area access control and the warehouse control system (WCS). This is supplemented by supplying systems such as conveyor technology or additional AGVs. Multi-frequency guide wires and transponders in the ground ensure efficient orientation within the aisle. As well as transporting standard pallets, the automatic high-rack stackers can actuate a wide range of peripherals, such as the door to the maintenance area. To enable 24/7 deployment, the energy supply for the automatic high-rack stackers can take the form of rack-mounted busbars. If you opt for an AGV solution, you will reap the benefits of a high-availability system. And if you should ever encounter any problems, we will assist you with our support service for automatic systems, either on-site or via remote access.
Safety Video
Driverless but still safe
Extensive safety sensors protect man, machine and load. Automated Guided Vehicles (AGV) only travel on routes assigned to them. Nevertheless, there may be situations in which an employee inadvertently crosses the route. In this case, the extensive CE-certified safety system will initiate immediate braking. A key component of the system is the personal protection sensors – equipped with a warning and a protection field – which permanently monitor the direct routes of the AGV. If a person enters the warning field, the truck immediately slows down. If the person remains standing, it stops, while a signal is transmitted to the control center indicating the blocking of the truck.

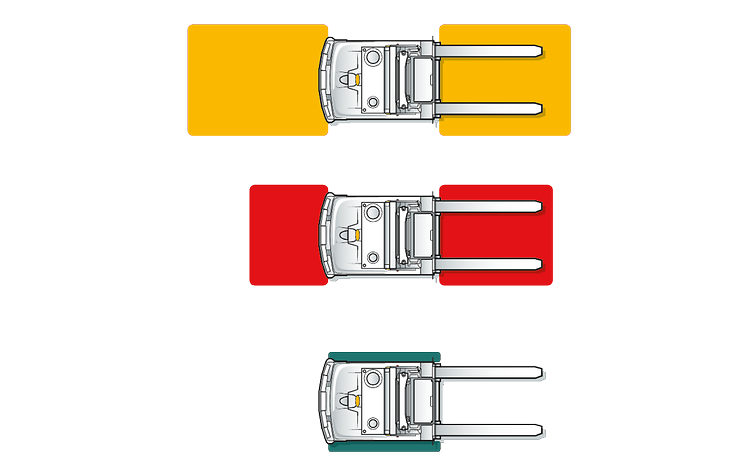

Safety despite speed

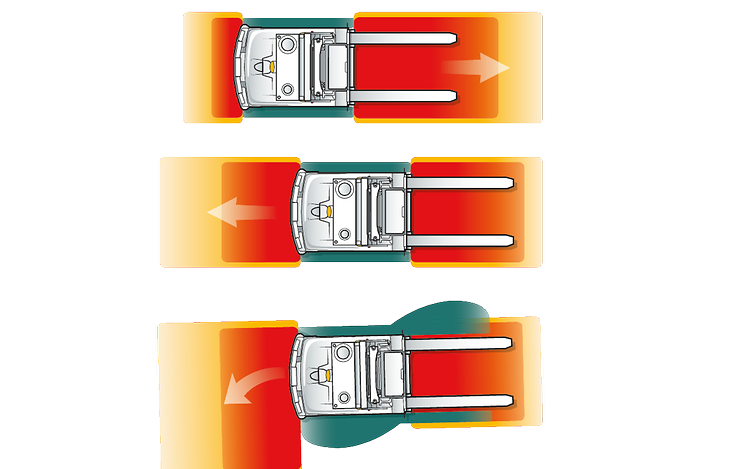

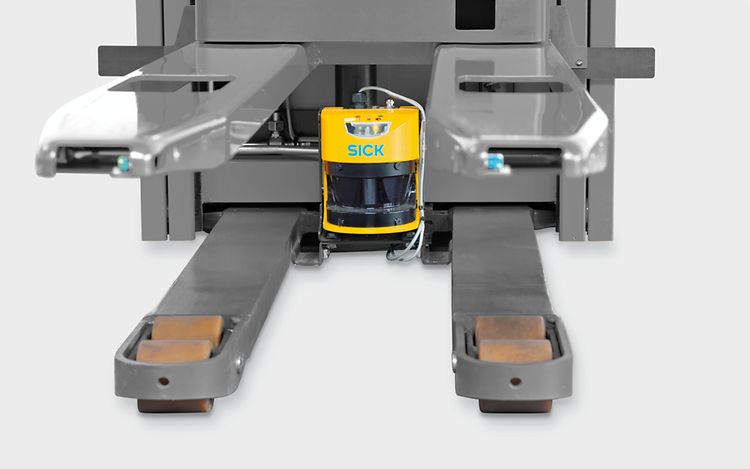

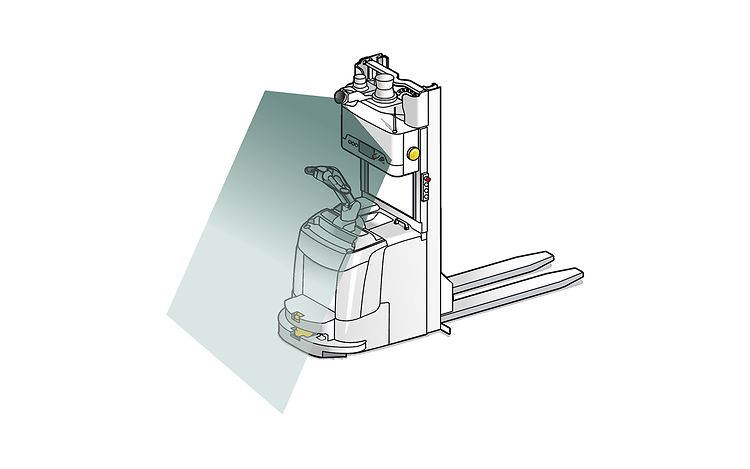

All AGVs are generally fitted with a personal protection scanner in driving direction. Depending on the truck’s speed, the field lengths of the safety area are adjusted. This means the faster the truck moves, the more its warning and protection fields are increased and their surroundings are more proactively scanned.
Safety despite driving direction

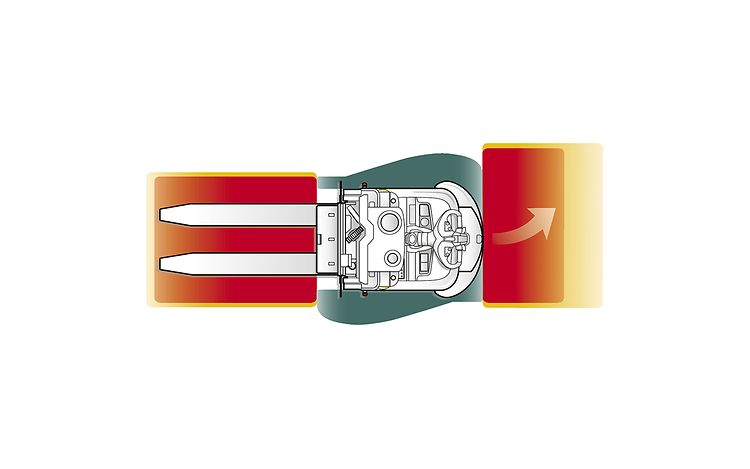

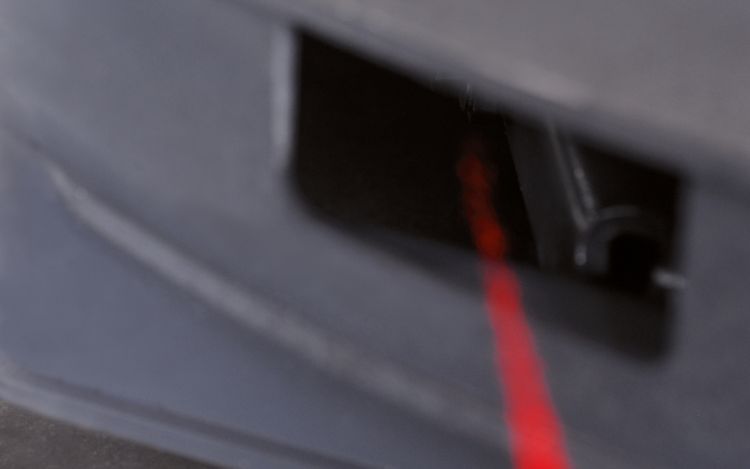

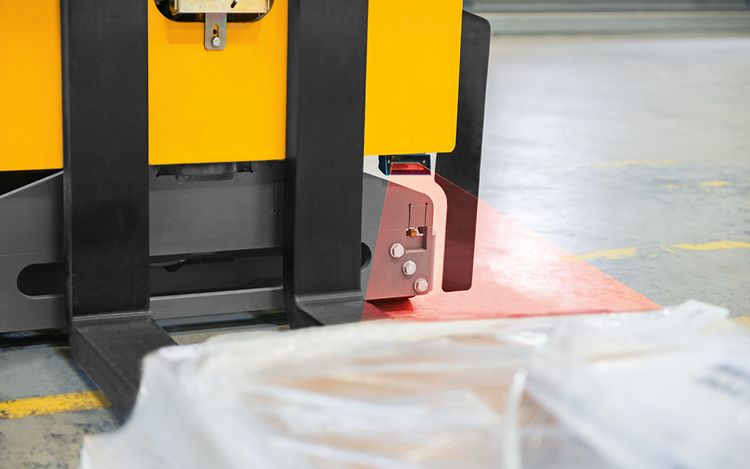

The Automated Guided Vehicles also detect objects that may be located on the sides of the truck along its path. The side-mounted laser scanners allow for these objects to be detected in advance. In addition, they serve as an additional feature when cornering. The sensors identify objects that could touch the outside of the truck while cornering. If this is the case, they ensure a contactless stop of the truck.
Safety Plus / on top

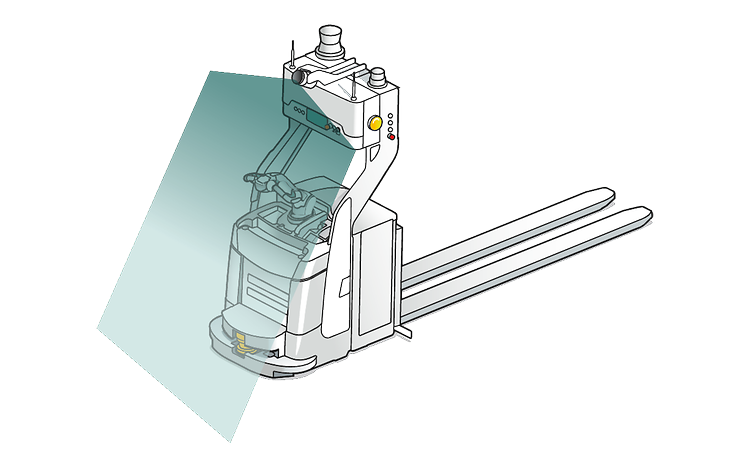

Additional safety is provided with the sensor curtain. The purpose of the sensor curtain is to detect objects above and below the detection level of the personal protection sensor and to avoid a collision with these objects. For example, it can detect pallets and loads that are protruding too far out of the racking. The sensor curtain does not only operate when travelling straight ahead, it also “looks” ahead into the curve.
A contact for all business areas
No need for reconstruction of your warehouse
The introduction of an Automated Guided Vehicle normally requires a high level of preparation on the customer side and is often accompanied by disruptions of the production. In order to avoid this, our AGVs are prepared for their specific application and thoroughly tested regarding their hardware and software prior to their delivery. Therefore, the degree of adaptation during the “hot phase” and possible standstill periods in your warehousing and production area are reduced to a minimum.
On site, the AGVs are easily connected with the customer’s host system by using the award-winning Jungheinich Logistics Interface. This inhouse developed middleware is a so-called plug-in and has already been successfully implemented at over 100 customer plants. Thanks to this high-quality, standardized hardware and software we are able to realize the implementation of your AGV efficiently, while saving resources.

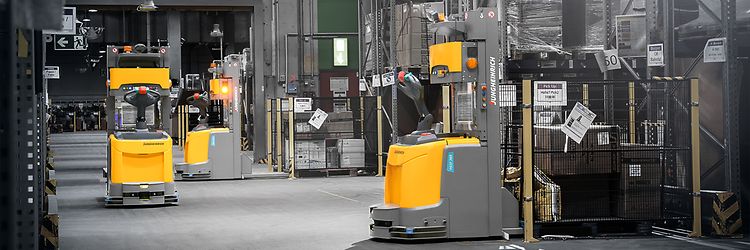

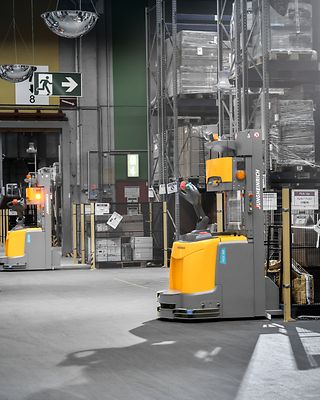

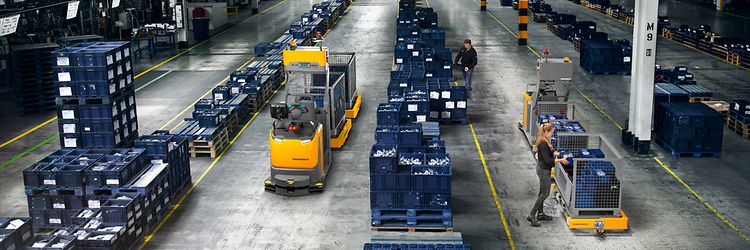

Our AGV model in action

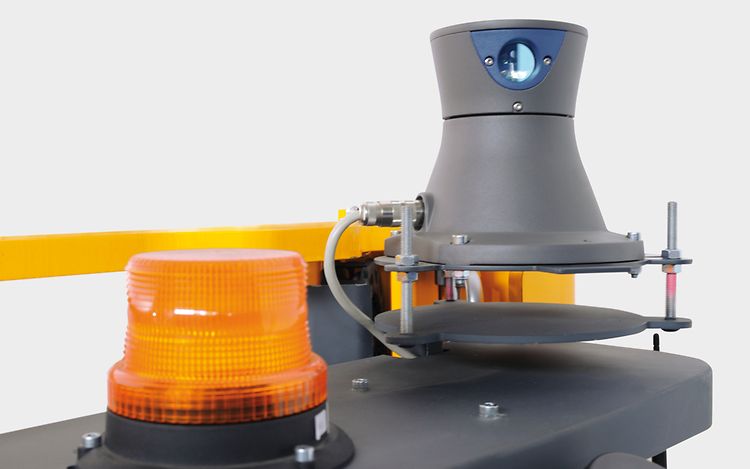

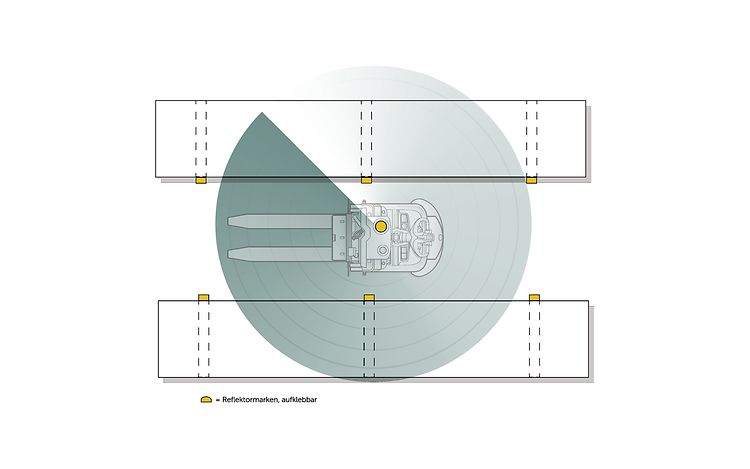

Through the laser-guided route guidance you can optimize your transport routes and relieve your employees, while increasing efficiency and reliability around the clock. The simple integration into the existing infrastructure allows for flexible use of the AGV models. See for yourself and check out our AGVs in action.
