Medium/high level order picker 1.0t

4250 - 7000 mm
1000 kg

48-V synchronous reluctance drive for maximum efficiency
Ergonomic and individually adjustable operating concept
Intelligent system connection via logistics interface
Optimum view and visibility in warehouse operations
warehouseNAVIGATION for up to 25% more throughput (optional)

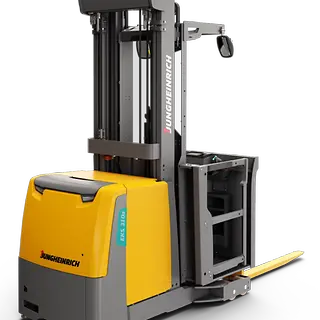

EKS 310s

The powerful and efficient EKS 310s medium/high level order picker masters all tasks convincingly while saving energy, even in high-performance operations. Ideally suited for use in narrow-aisle warehouses, the EKS also allows you to achieve a significantly higher picking performance. With an extended mast portfolio, the medium/high level order picker reaches heights of more than 8.5 metres. Speed and load capacity can be increased as required with individual performance packages. The seamless integration of the EKS into your existing Warehouse Management System by means of warehouseNAVIGATION and RFID technology allows for significantly faster processes.At the heart of the new generation is the synchronous reluctance motor, which maximises efficiency while minimising energy losses. Whether with powerful lithium-ion power or lead-acid batteries and our 2Shifts1Charge guarantee: Our EKS enables you to achieve maximum picking performance with optimum space utilisation and energy efficiency.

Li-Ion

No worries – no compromise

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Guaranteed: 100 % satisfaction

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Maximum picking performance

Synchronous reluctance motor for maximised efficiency with minimum energy loss.
48-V control concept: Increased performance despite compact unit – thanks to fewer cables, fewer plugs and reduced energy consumption.
Area-specific speed profile via transponders.

Cost-effective energy management

Lead-acid batteries with 2Shifts1Charge: Longer operating times with only one battery charge (up to 2 shifts).
Active energy and battery management.
Longer battery life.

Available with lithium-ion-technology:

High availability thanks to extremely short charging times.
No battery exchange required.
Cost savings thanks to freedom from maintenance (when compared to lead-acid batteries).
No charging rooms or ventilation required as there is no build-up of gas.

Integrated personal safety and collision protection system PSS Standard, PSS Plus & PSS Anti Collision (optional)

On-site integration with the safety computer.
Project planning, commissioning and maintenance by Jungheinrich.

RFID technology (optional)

Truck control with transponder technology.
Permanent distance measuring for exact positioning within the warehouse.
High level of safety due to lift/travel cut-outs.
Travel speeds optimised according to the floor topology.

warehouseNAVIGATION (optional)

Linking the EKS to the warehouse management system (WMS) via radio data terminal or scanner.
Direct acceptance of the target destination in the narrow aisle on the truck display.
Automatic vertical- and horizontal positioning.
High degree of automation.
Improved order-picking performance.
Elimination of incorrect positioning through RFID location detection.

Commissioning and maintenance:

Fast and reliable commissioning.
Integrated diagnostic system.
Maintenance interval of 1,000 operating hours.

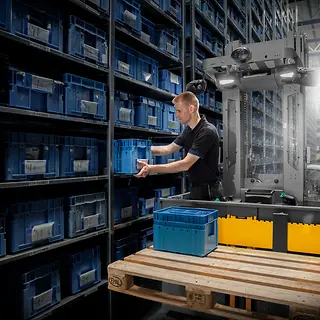

Ergonomic workplace:

Optimised operating concept: all information at a glance.
Best all-round visibility for an overview of every situation.
Easy entry with low entry height and smooth-running yet robust side barriers.
Spacious cabin with ample storage.
Ergonomics package with ergonomic floor mat and foot switch optionally available.

Individual, performance-enhancing options

liftPLUS: Increase of the lift speed.
drivePLUS: Increase of the travel speed.
positionCONTROL: semi-automated approach to the lift height.



Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EKS 310s Z_I	1,000 kg	7,000 mm	11 km/h	3,095 mm	48 V
EKS 310s Z_SF	1,000 kg	7,000 mm	11 km/h	3,095 mm	48 V
EKS 310s L_I	1,000 kg	7,000 mm	11 km/h	3,140 mm	48 V
EKS 310s L_SF	1,000 kg	7,000 mm	11 km/h	3,140 mm	48 V
EKS 310s O_I	1,000 kg	7,000 mm	11 km/h	3,085 mm	48 V
EKS 310s O_SF	1,000 kg	7,000 mm	11 km/h	3,085 mm	48 V
