Sideways-seated pallet truck 3.3t

115 mm
3300 kg

Multi-pallet transport with up to three pallets.
High travel speeds up to 20 km/h thanks to 48-V 3-phase AC technology.
Available with state-of-the-art lithium-ion technology.
180° / 360° steering for agile direction changes.
Ergonomic operator position layout.

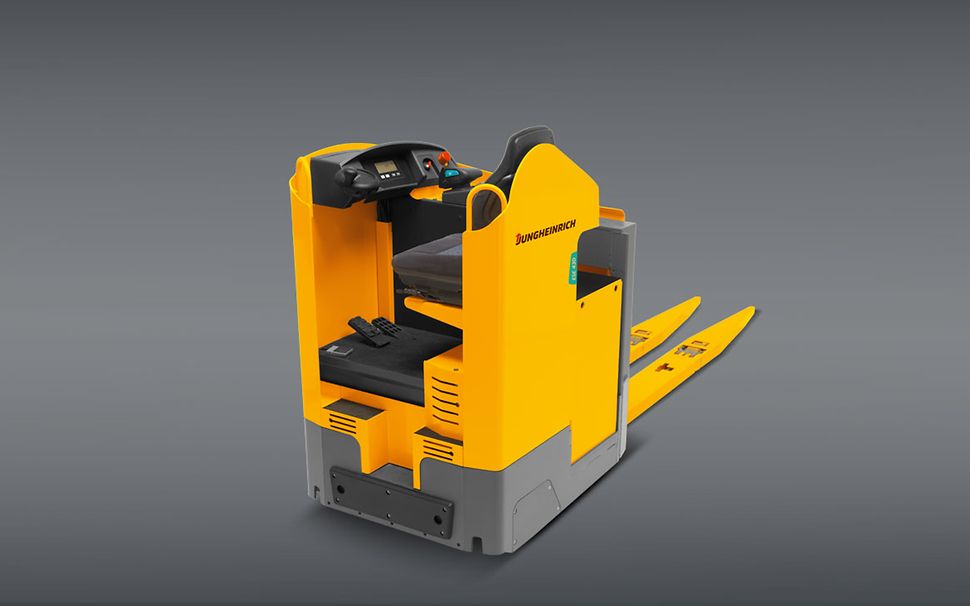

ESE 533

The powerful and ergonomic ESE 533 electric transverse-seated pallet trucks are ideal for transporting heavy loads over long distances, easily moving up to three pallets at a time. In the process, a 48-V 3-phase AC motor ensures powerful acceleration even with the heaviest loads. Equipped with a maintenance-free lithium-ion battery, the ESE trucks convince with best performance, high profitability and maximum availability. Time-saving booster charging of the battery is possible due to the easily accessible comfort charging interface. The generous amount of space in the operator's cabin, the optimal accessibility of all controls as well as three individually adjustable travel programs enable working with the transverse-seated truck to be both efficient and relaxed.

Li-Ion

No worries – no compromise

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

Guaranteed: 100 % satisfaction

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

3-phase AC technology for high travel speed

Powerful acceleration and high drive dynamics.
Maintenance-free motor technology without carbon brushes.
Highest speeds in the low-lift segment up to 20 km/h.

Powerful lithium-ion technology

Advanced lithium-ion battery with power of 48 V 520 Ah.
Fast and booster charging via the integrated comfort charging interface during breaks or downtime for maximum truck availability.
Reliably high performance even when not fully charged.
No battery care and maintenance costs.
Also available with lead-acid battery.

Effective truck protection

EasyAccess Softkey access system to protect against unauthorised use.
Assignment of operator authorisations directly via the truck display.
Universal truck key no longer required.
Energy-saving function with automatic switch-off after 5 minutes for all EasyAccess access systems.

Robust construction

Resilient frame for continuous use at full rated load.
Torsion-resistant forks manufactured with strong reinforced steel, available in different versions.
Marking on forks for easy entry into pallets.

Low maintenance costs

Easily accessible components.
Large, easy to open service hatches.
Maintenance-free 3-phase AC drive motor without carbon brushes.

Optimum operator support

Three individually adjustable travel programs for a wide range of applications.
4-inch truck display for showing the most important operating data such as speed, kilometres driven, operating hours, etc.
Optional fully integrated Floor-Spot warning zone light for early, optical warning at intersections.
zoneCONTROL assistance system for efficient hazard management in the warehouse available as an option.

Comfortable operator position

Comfort seat individually adjustable according to seating position and body weight.
Important controls all within reach without changing grip.
180° / 360° 3-phase AC steering with improved steering wheel position.
Options bracket with large space and fixed mounting options for additional equipment such as terminals, writing boards or shrink wrap holders.
Steering wheel adjustment.
USB charging socket.

High ease of use

Control lever for activating all hydraulic functions, selecting direction of travel and sounding the horn.
All the controls are within the operator's field of vision and are clearly designated for each specific function.
Precision operation due to sensitive control of all functions.
