Electric pallet stacker for short distances

Electric pedestrian stacker 1600 kg

2810 - 5210 mm
1600 kg

Upright tiller driving for excellent manoeuvrability
Proportional hydraulics for precise and gentle lifting and lowering
CAN bus technology makes fault diagnosis and troubleshooting easier
Various storage spaces bring greater convenience to the operator

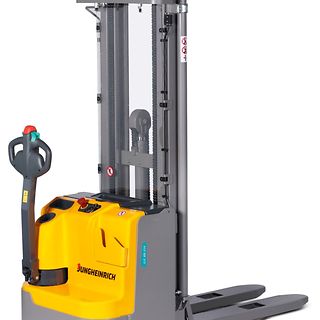

EJC BB 216

The powerful and efficient EJC BB 216 electric pedestrian stacker is perfect for any in-house application, be it transporting in confined spaces or stacking up to a lift height of 5,300 mm. Upright tiller driving enables the truck to operate easily in confined spaces. The multifunctional tiller arm is intuitive to use and can be easily operated with the right or left hand. This contributes to high efficiency and good safety in your warehouse. The robust quality components are beneficial for reliable operation and lower wear and tear. Proportional hydraulics enable the operator to pick up loads accurately and safely. Thanks to maintenance-free and powerful AC technology, not only is goods throughput faster but operating costs are also significantly reduced.

Features

Innovative drive technology

High levels of efficiency with excellent energy management.
Rapid direction change.
Maintenance-free drive motor.

Energy-efficient operation

Battery and components are protected and efficiency is increased thanks to economic energy management.
Automatic lift cut-off function can significantly reduce energy consumption.
Long service life with battery capacity up to 270 Ah.
Energy recovery thanks to regenerative braking on deceleration.

Safe operation

The low ground clearance of 28 mm helps to reduce the risk of foot injuries.
Safe distance is maintained between operator and truck due to the long tiller.
Very low noise level during travel.

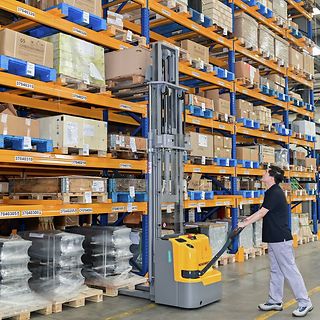

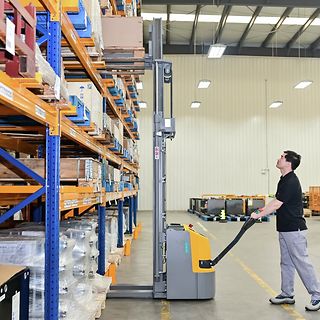

Safe stacking and retrieval

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Proportional hydraulics for accurate lifting and lowering.
Four-wheel concept for high stability.

Service-friendly design

Body panel is easy to open with just 2 screws.
Service access ports on front apron.
CAN bus technology makes fault diagnosis and troubleshooting easier.

Strong and concise design

8-mm thick frame together with the iron battery cover maximises the truck’s lifetime.

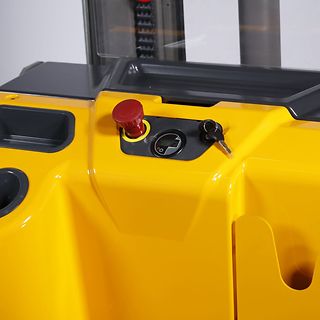

Central arrangement for all important control instrumentation such as the display, emergency disconnect and key.

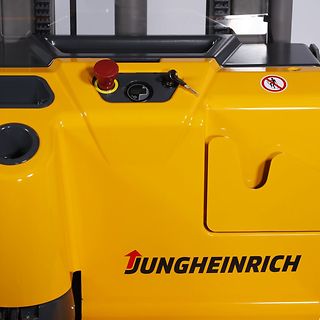

Practical storage compartments

Document holder in the front cover.
Storage compartments in the dashboard panel.
Cup holder.

Additional equipment

Flexibility of lift heights, available at 2,810 mm, 3,510 mm, 4,210 mm, 4,510 mm and 5,210 mm.

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJC BB 216 ZT 2900	1,600 kg	5,210 mm	6 km/h	1,964 mm	24 V
EJC BB 216 ZT 3600	1,600 kg	5,210 mm	6 km/h	1,964 mm	24 V
EJC BB 216 DZ 4300	1,600 kg	5,210 mm	6 km/h	1,964 mm	24 V
EJC BB 216 DZ 4600	1,600 kg	5,210 mm	6 km/h	1,964 mm	24 V
EJC BB 216 DZ 5300	1,600 kg	5,210 mm	6 km/h	1,964 mm	24 V

Downloads

Technical data EJC BB 216 pdf (344.4 KB)

Product advantages EJC BB 216 pdf (2.5 MB)
